Technical Data | |
| Production period | 1964-1965 |
| L.o.a. [m] | 9.06 |
| Beam [m] | 3.11 |
| Draft [m] | 0.70 |
| Displacement [t] | 3.50 |
| Fuel [l] | 2 x 200 |
| Water [l] | 125 |
| Voltage [V] | 12 |
| Hull | Mahogany |
| Number of boats | 6 |
| Designer | Otto Scheen jun. |
The Royal Cruiser II was the successor of the well-known Royal Cruiser I. The boat used the same basic design which allowed safe cruising at open sea.
The ship was designed by Otto Scheen, who also designed the Royal Cruiser I. The Royal Cruiser II was the direct predecessor of the successful Royal Cruiser III, which used the same hull.

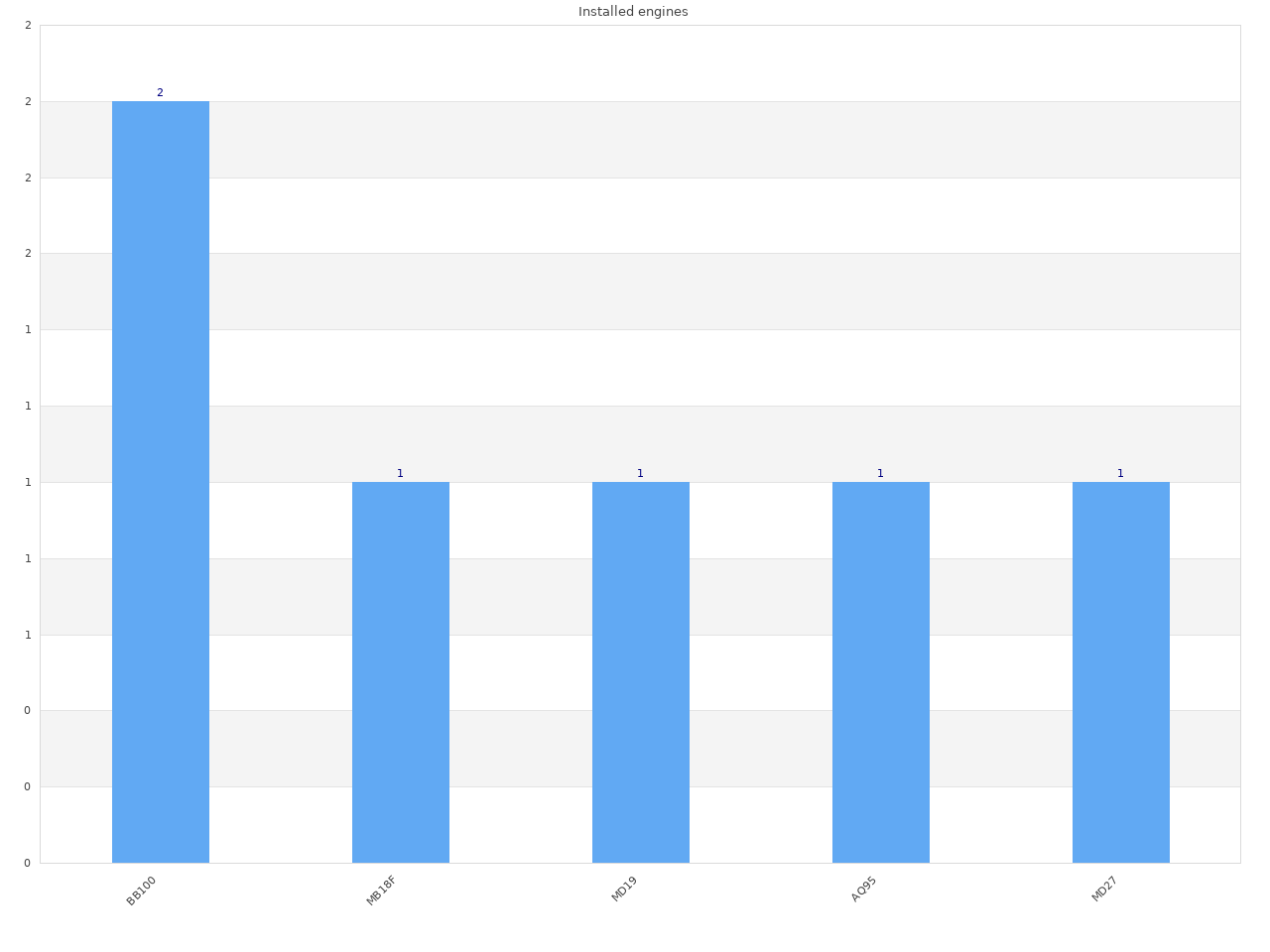

EnginesAlthough only six ships of this type were built, at least five different engine types were used. Noteworthy here also the hull number 977 with the then rare double stern drive.
2025-02-08
Photos and images |
||
|
| Engines | Volvo Penta MD27 | Volvo Penta MB18F | Volvo Penta BB100A | Volvo Penta AQ95/100 | Volvo Penta MD19 | |
| Production | 1963-1966 | 1963-1968 | 1963-1969 * | 1964-1966 | 1964-1968 | |
| Fuel | Diesel | Paraffin/Kerosene | Petrol/Gasoline | Petrol/Gasoline | Diesel | |
| Stroke | 4 | 4 | 4 | 4 | 4 | |
| No. of cylinders | 6 | 4 | 4 | 4 | 4 | |
| Bore | [mm] | 85.00 | 84.14 | 84.14 | 84.14 | 88.00 |
| Stroke | [mm] | 80 | 80 | 80 | 80 | 80 |
| Compression ratio | 21.0:1 | 10.0:1 | 10.0:1 | 22.1:1 | ||
| Displacement | [l] | 2.72 | 1.78 | 1.78 | 1.78 | 1.95 |
| Torque | [Nm] | |||||
| Engine output | [kw/(HP)] | 42 - 61/ (57 - 83) | 33 - 41/ (45 - 56) | 46 - 74/ (63 - 100) | 70/(95) | 34 - 50/ (46 - 68) |
| Rotations | [1/min] | 4500 | 3000-4500 | 3000-5000 | 4500 | 3000-4500 |
| Weight | [kg] | 315 | 200 | 260 |
| * All variants of this engine |
| Pricelists | Low | Hi | ||
| AB Örnmaskiner - No. 26B - Pricelist | 1964 |  |  | |
| Complete brochures | Low | Hi | ||
| AB Örnmaskiner - Complete brochure | 1964 |  |  | |
| AB Örnmaskiner - Complete brochure | 1964 |  | | |
| Storebro - Technical documents | Low | Hi | |||
| Royal Cruiser II - Outside Profile etc. | B-518-0 | 1963 | |  | |
| Royal Cruiser II - Outside Profile etc. | B-513-0 | 1963 | | | |
| Technical brochures - Manuals | Low | Hi | |||
| Volvo Penta AQ95/100 AQ110/100 AQ120/100 - Manual | |  | |||
| Volvo Penta BB100/MB18F/BB30B/BB30F - Manual | | | |||
| Technical brochures | Low | Hi | |||
| Volvo Penta - Program 1959 | | | |||
| Volvo Penta - Program 1960 | | | |||
| Volvo Penta - Program 1964 | | | |||
| Volvo Penta AQ95/100 - Productflyer | | | |||
| Volvo Penta MD19 - Productflyer | | | |||
| Volvo Penta MD27 - Productflyer | | | |||
|
|||||||||||||||
