Close  Storebro Royal Cruiser 410 Commander


Technical Data
Year of production2003-2008
L.o.a. [m]12.50
Beam [m]3.90
Draft [m]1.00
Height above waterline [m]5.14 - with radar-arch
3.47 - without radar-arch
Displacement [t]9.00
Fuel [l]2 x 500
Water [l]400
Holding tank [l]135
Voltage [V]12
HullGRP
Number of boats78
DesignerJohn H. V. Lindblom
  Remarks
The Storebro 410 Commander was released in 2004 and was a completely newly developed model.

Concept
It offered a more attractive design than her rather boring big sister Storebro 475 Commander. Many of the negative points of the big sister were removed. During the production period the boat was permanently upgraded. The SRC 410 Commander shared the hull with the Nimbus Nova 42, which was also built by Storebro, and was delivered on special request as Storebro 42 Nova. For the Storebro Nova the grid behind the side windows was replaced with a in Storebro manner varnished piece of wood with a milled crown logo.
In addition to the standard white hull, the SRC 410 was also offered with a dark blue hull. This variant was in great demand in Great Britain, among other places.
The ship completed the Nimbus/Storebro Commander product line of boats from 34 to 47 feet.

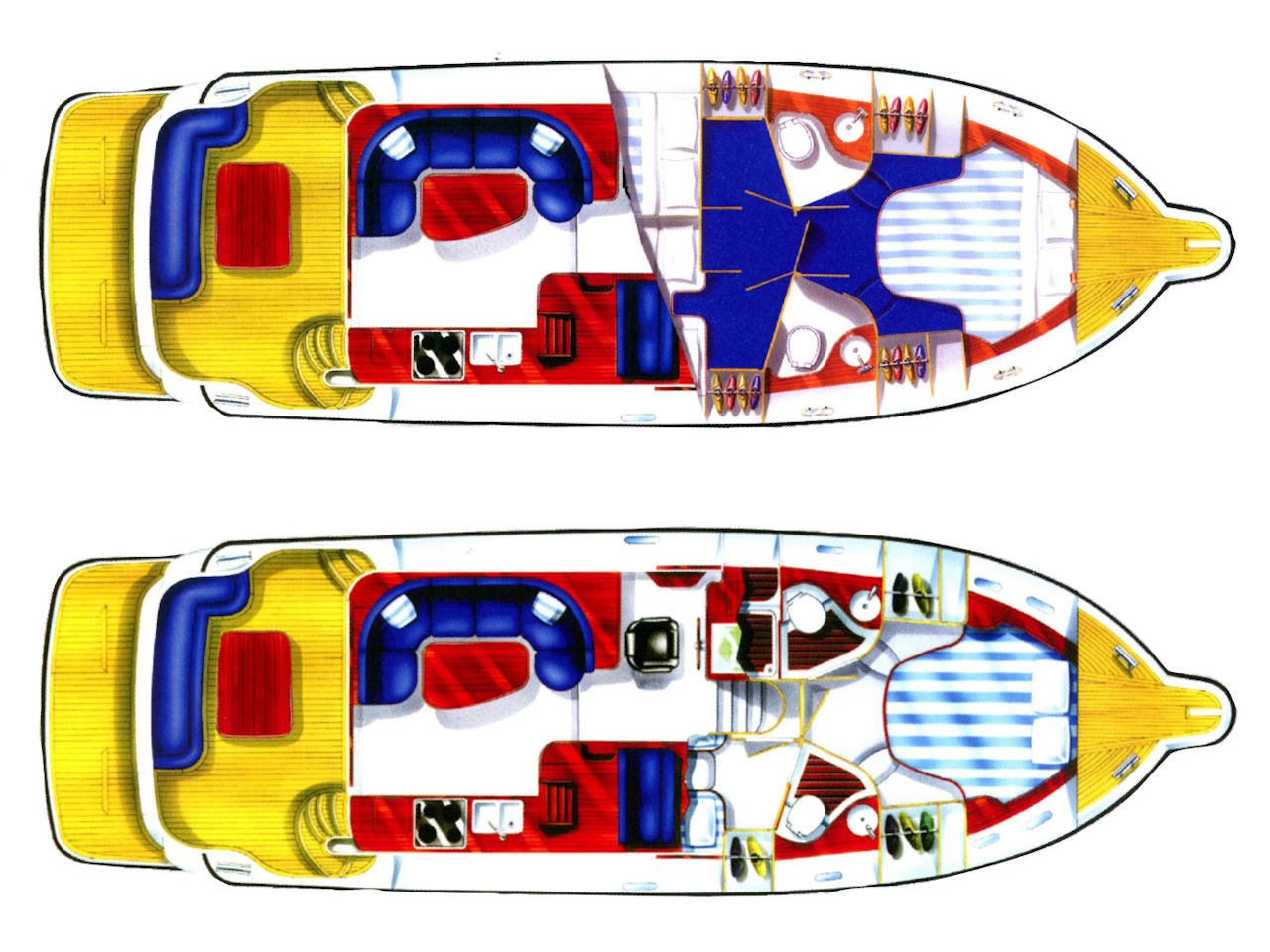

Layout
The space utilization of the ship is excellent. Old virtues like a bench for the passengers were taken up again. The ship has two sliding doors for quick exit to the side.
As a part of the facelift an alternative to the first available 2-cabin version, the 3-cabin version was developed. Access to the second guest cabin was created by cutting off the shower of the owner's bath. For this cabin the unused storage space beneath the drivers-place, which was previously difficult to reach only through a hatch, was used.
For the model year 2008, a new two-cabin layout was presented. The guest cabin was now equipped with three beds, so that the ship possessed now by default five permanent berths. A little problem was the poor ventilation of the 3-bed guest cabin. The standard equipment included only one port light on the starboard side. This problem was solved on the Storebro 435 Commander, which got two port lights on starboard and one on the port side.
Engine
Unlike her sister Nova 42, which followed a little later, the SRC 410 Commander was only offered with shaft drive. While the prototype was equipped with the well-known Volvo Penta TAMD63P with 355 hp each, the new Volvo Penta D6 was used for the other ships. The standard engine then became the D6-310I with 303 hp at the shaft. This was clearly inferior to the TAMD63P in terms of power, but its acceleration and power curve were considered better and more harmonious.
It was not until model number 4521 that the Volvo Penta D6-370I with 363 hp at the shaft was used. This engine then became the standard for the SRC 410 Commander, with one exception. This engineisation also took into account the weight development of the ships.
In the meantime, the D6-330 has also been listed in the price list. However, this was never installed in a SRC 410.

Miscellaneous
SRC 410: image 1 of 1 thumb
Compared to the first ships, further boats obviously became somewhat heavier. While the first brochure pictures show a 410 with the side inscription "Storebro Royal Cruiser 410 Commander" and the water pass with a blue ribbon below the bathing platform, later models with "Storebro 410 Commander" and a blue ribbon at the water pass can be seen, which extends all the way to the bathing platform. This also visually stretches the somewhat chubby line of the ship.

2022-04-20
  Photos and images
SRC 410: image 1 of 10 thumb SRC 410: image 2 of 10 thumb SRC 410: image 3 of 10 thumb SRC 410: image 4 of 10 thumb SRC 410: image 4 of 10 thumb SRC 410: image 5 of 10 thumb SRC 410: image 6 of 10 thumb SRC 410: image 7 of 10 thumb SRC 410: image 8 of 10 thumb SRC 410: image 9 of 10 thumb SRC 410: image 10 of 10 thumb
Pictures from the production
SRC 410: image 10 of 10 thumb SRC 410: image 10 of 10 thumb SRC 410: image 10 of 10 thumb SRC 410: image 10 of 10 thumb
Additional Photos
In some cases, further images of registered ships are available for registered users.
up Enginesminimize
EnginesVolvo Penta
TAMD63P-A
Volvo Penta
D6 310I-A
Volvo Penta
D6 310I-B
Volvo Penta
D6 370I-B
Production1994-20052002-20042004-20062004-2008
FuelDieselDieselDieselDiesel
Stroke4444
No. of cylinders6666
Bore[mm]98.40103.00103.00103.00
Stroke[mm]120110110110
Compression ratio15.0:117.5:117.5:117.5:1
Displacement[l]5.505.505.505.50
Torque[Nm]904
Engine output[kw/(HP)]265 - 272/
(360 - 370)
223/(303) ***223/(303) ***267/(363) ***
Rotations[1/min]2800350035003500
Weight[kg]833677677677
*** Power at the propeller shaft
Attention:
The values given in the motor diagrams below are measured values of individually equipped ships. The measured values can vary depending on the equipment as well as the wind and temperature conditions. These values do not indicate a binding property, but can only serve as indications.
src410: image 1 of 1 thumb
As a registered user, depending on the type of boat, you have access to further diagrams regarding consumption, range and noise level.
up Statisticsminimize
src410: image 1 of 1 thumbsrc410: image 1 of 1 thumb
As a registered user, you have access to further diagrams on hull colours, layout variants, type of wood used and production figures per year, depending on the type of boat.
  Technical development
As a registered user, you have access to the list of changes in production, depending on the type of boat.
